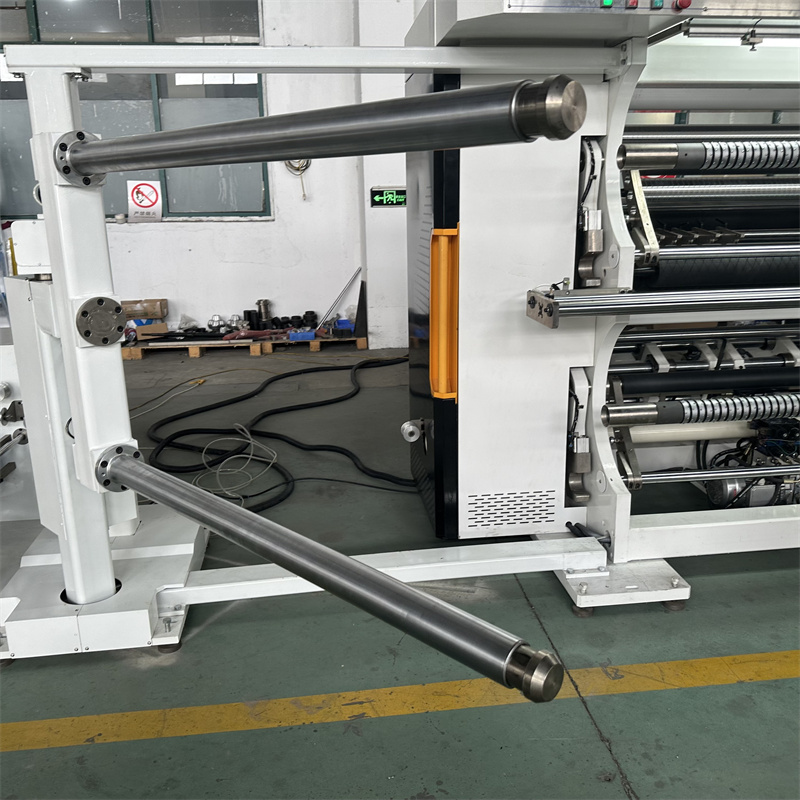

Details of machine

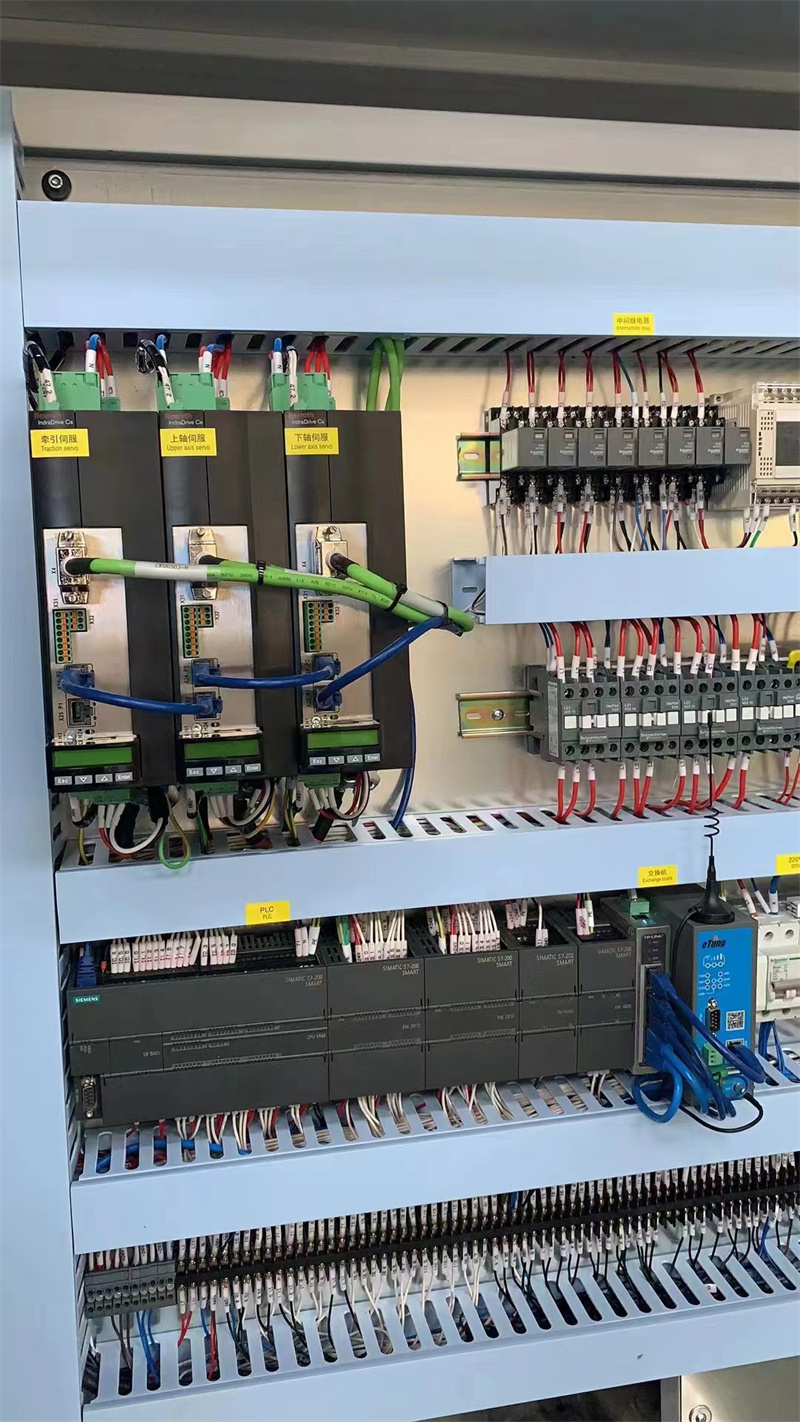

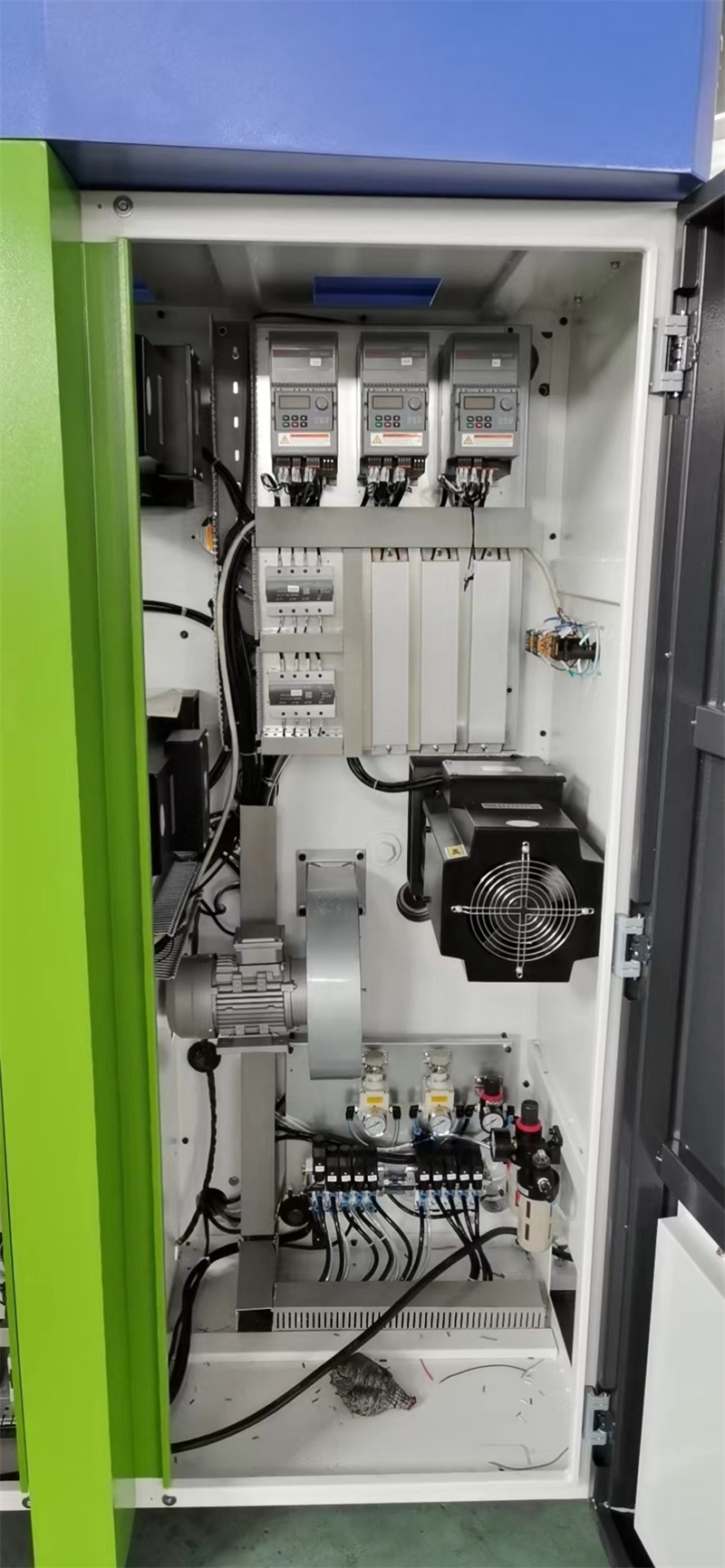

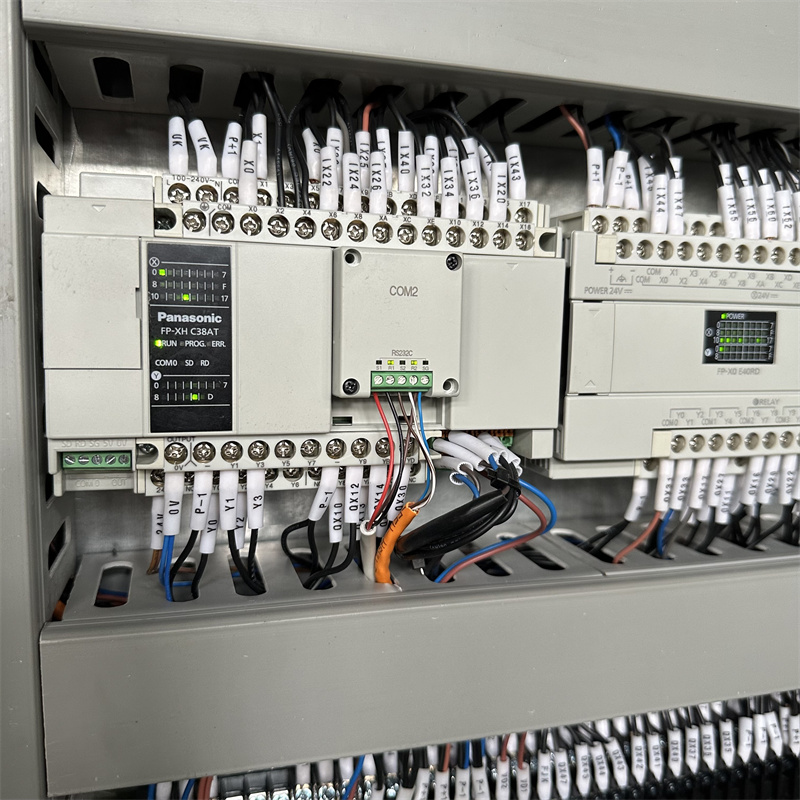

Branded Accessories
Product Parameter
Items | Details |
Voltage Power | Three-phase four-wire system 50Hz 380V/220V 5.5kw(6.5kw) |
Diameter of unwind | 400mm |
Diameter of rewinder | 420mm(520mm) |
Paper core inner diameter | 76mm |
Slitting Speed | 180m/min |
Max width | 1100-1800mm |

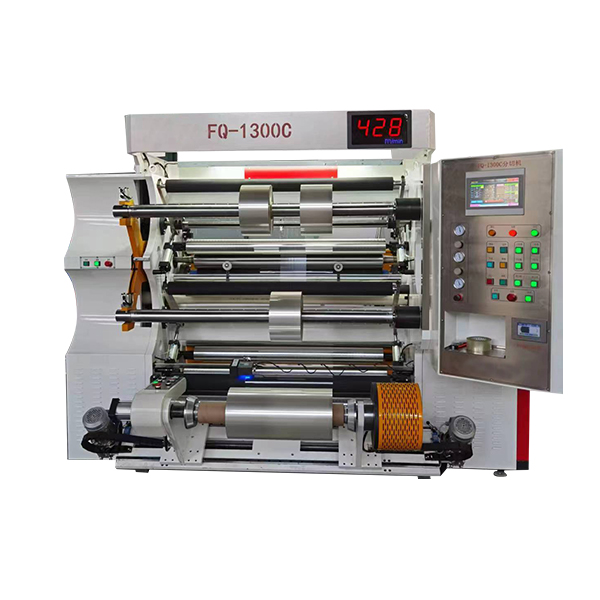

Product introduction
Slitting machine is a kind of mechanical equipment that cuts wide paper, mica tape or film into multiple narrow materials. It is often used in paper making machinery, wire and cable mica tape and printing and packaging machinery.
There are many advantages of slitting machine:
Vertical Slitter
Income, unwinding manual tension
Flat knife, round knife (optional)
Received, to put the scroll-button air shaft
Frequency Control
Product features

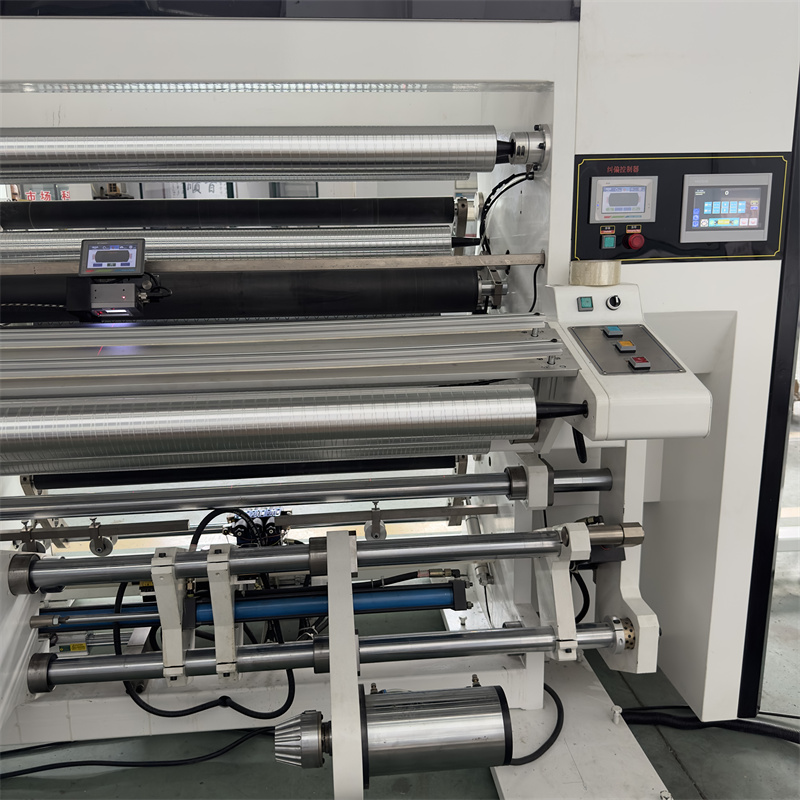

I.The automatic slitting machine is equipped with analog correction system to track the material edge or printing line, and the correction photoelectricity is equipped with electric fine-tuning function, so that the machine can expressly adjust the photoelectricity tracking position during the operation to ensure the correct alignment of the substrate.
II.Unwinding tension is executed by (shell rotating) magnetic powder brake, pressure sensor detection to realize automatic tension control, and rotary encoder is installed to detect the diameter of the material roll to realize the unwind margin alarm function.
Applications
The automatic slitting machine is mainly used for: non-woven fabrics; mica tapes, paper, insulating materials and various film materials, especially suitable for narrow tapes (non-woven fabrics, paper, insulating materials, mica tapes, films, etc.) cut.
plastic bags
wipe packaging
laminated materials
food labels
paper cups
water labels
paper
food pouches
Factory & Workshop
