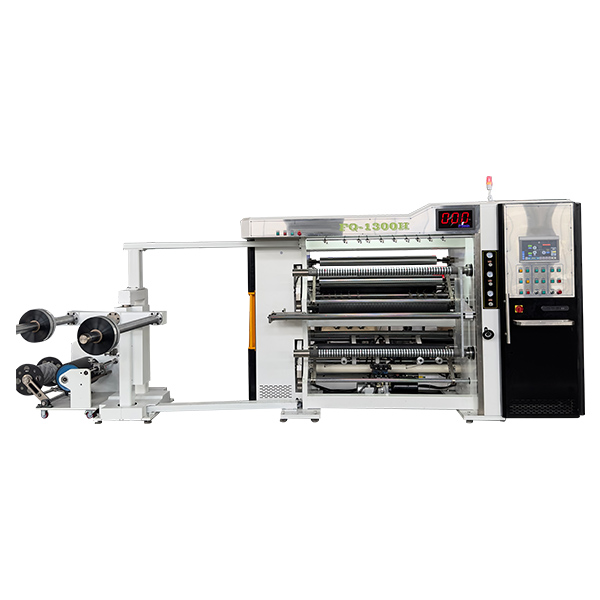

Details of machine

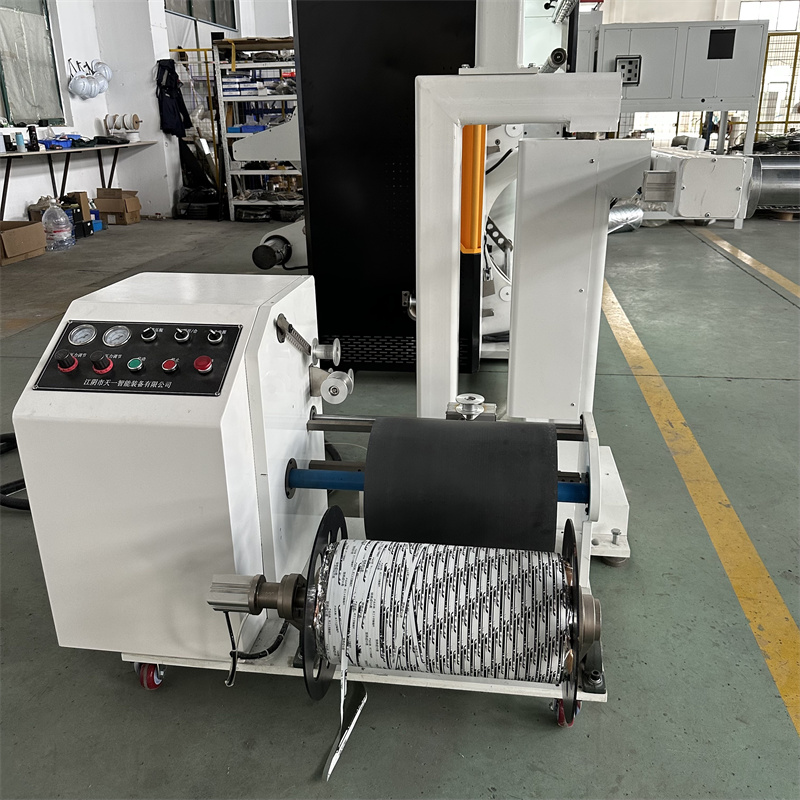

waste edge device

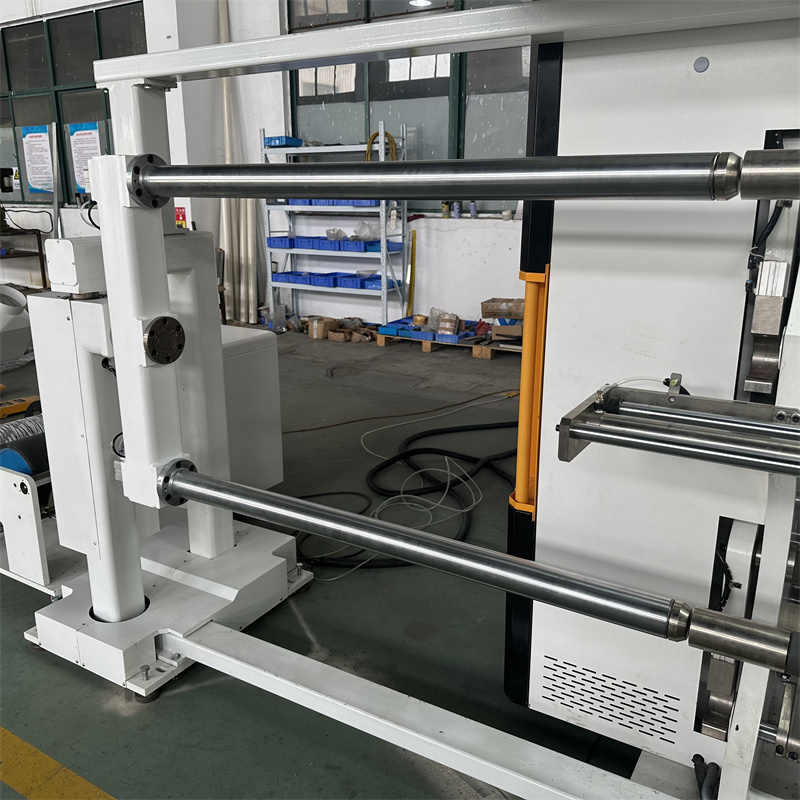

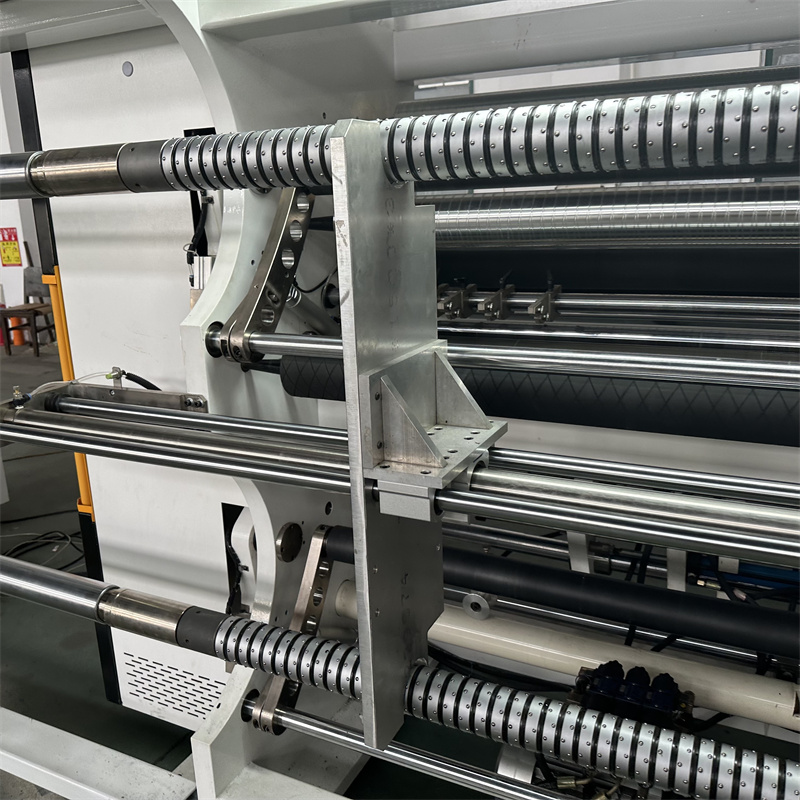

Unloading rack
Unloading rack

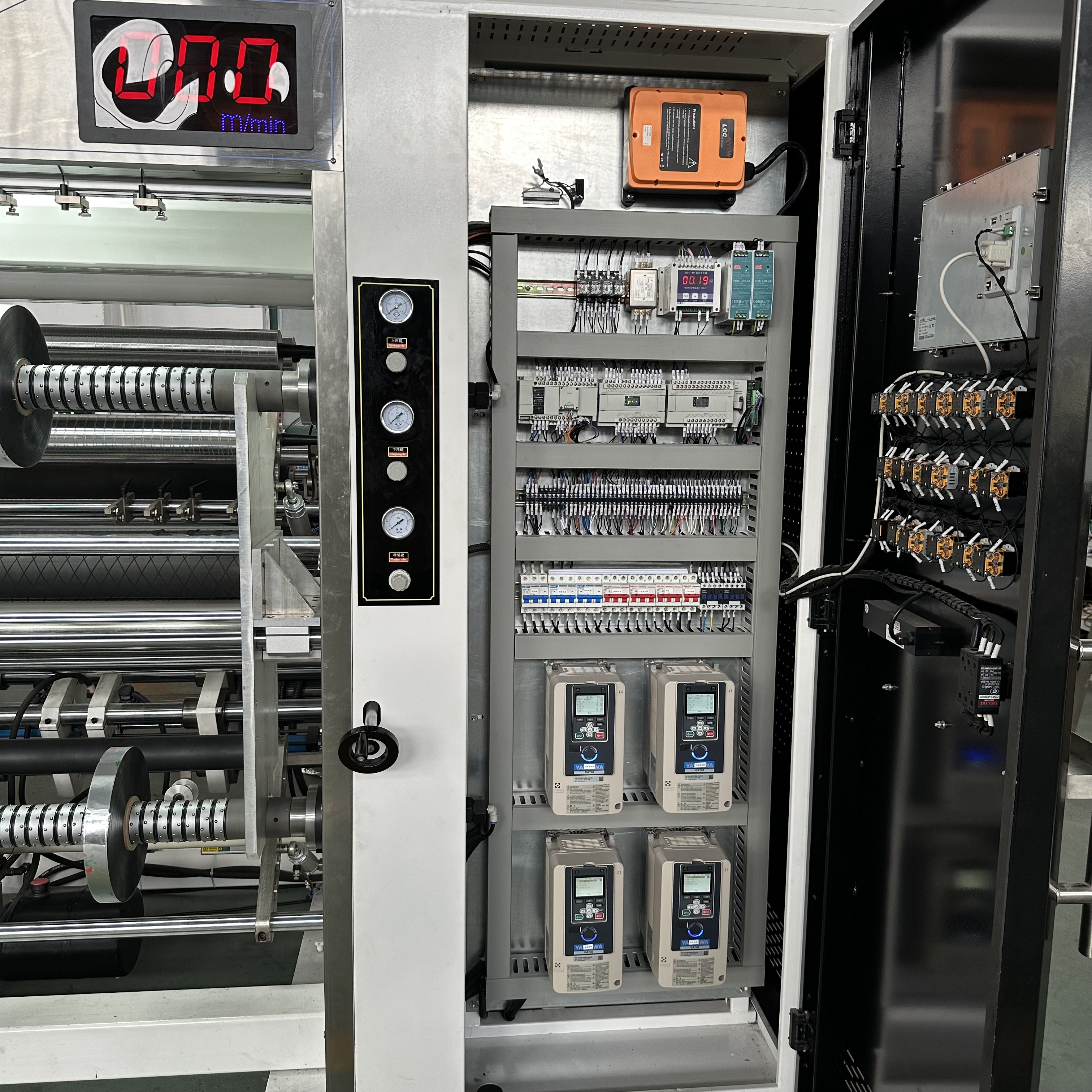

electrical box

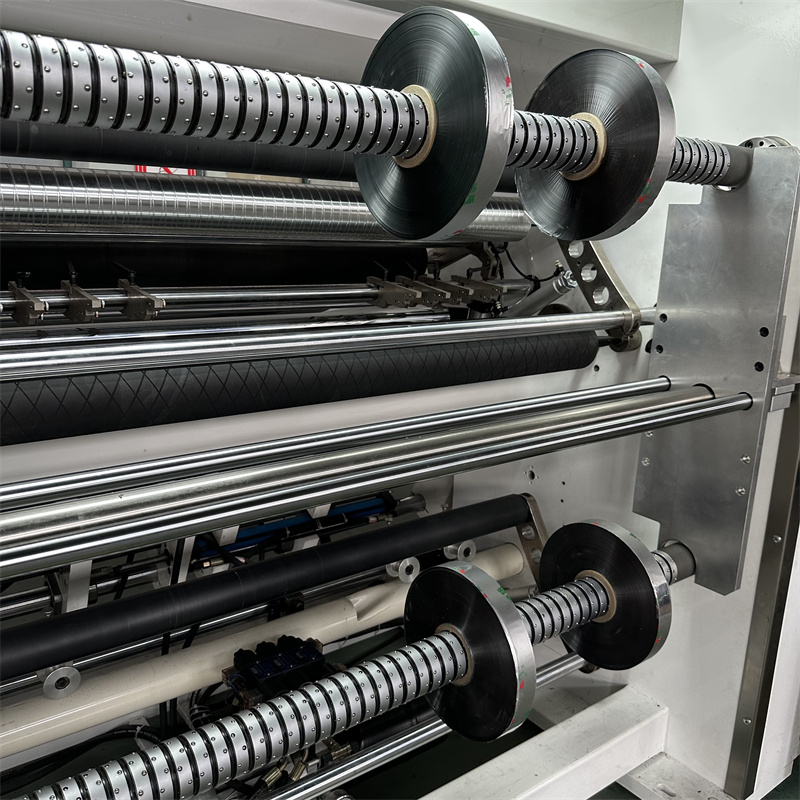

Differential shaft

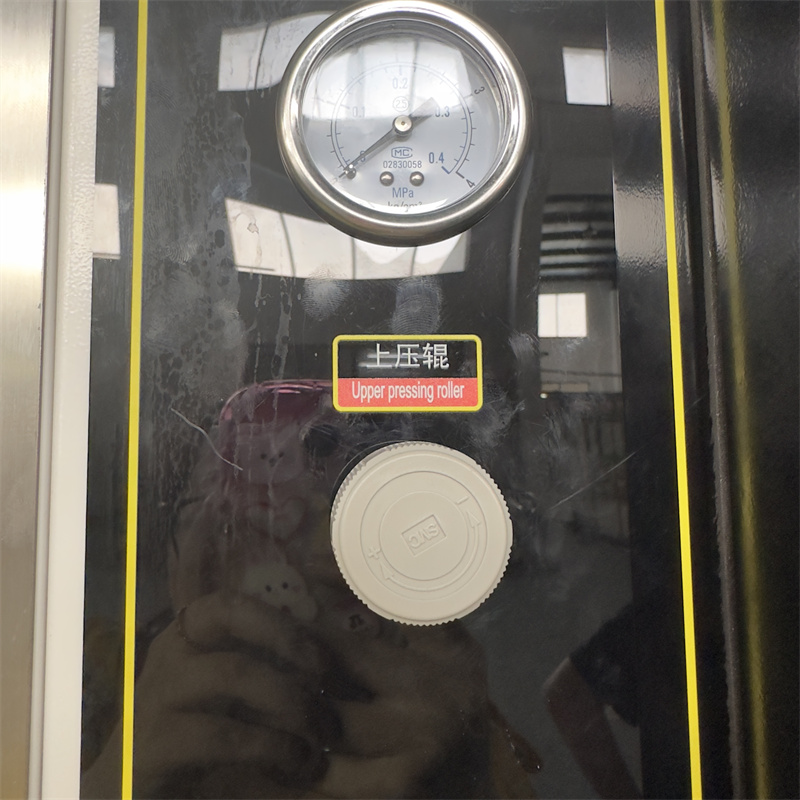

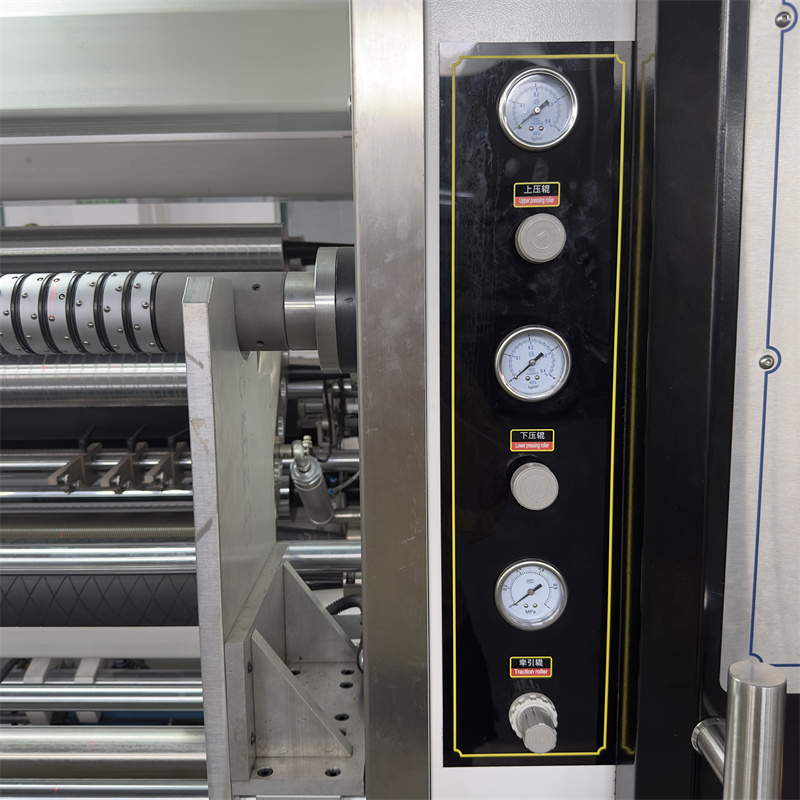

SMC Precision pressure reducing valve
control switch area

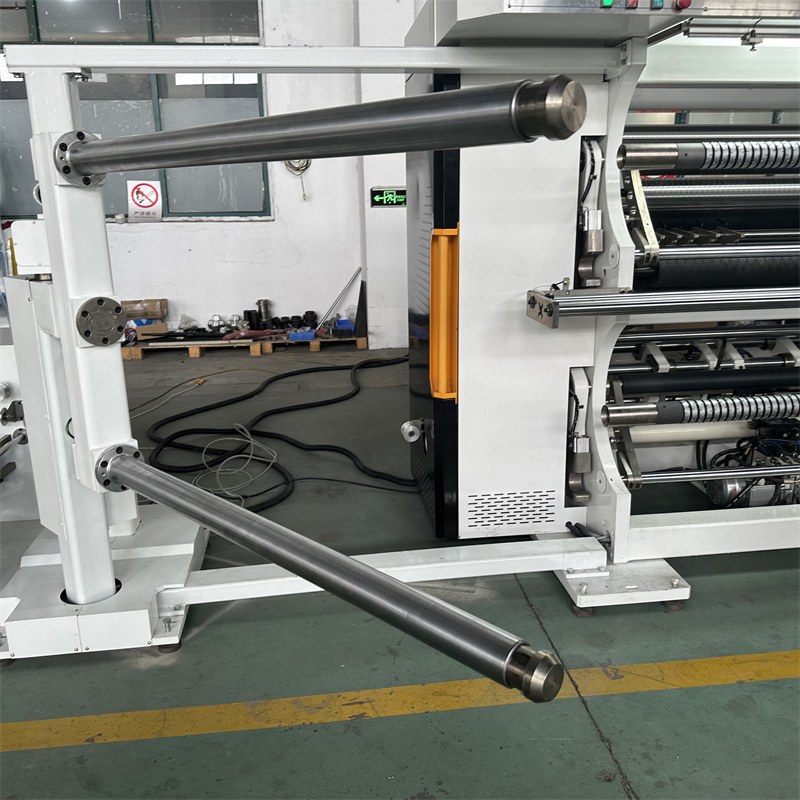

Unloading shaft

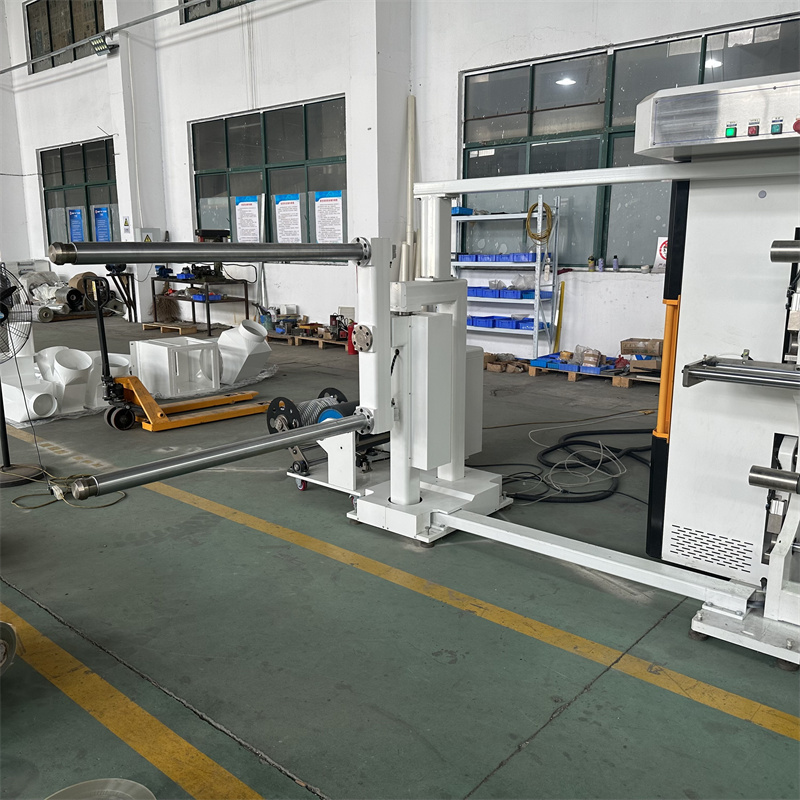

Unloading rack

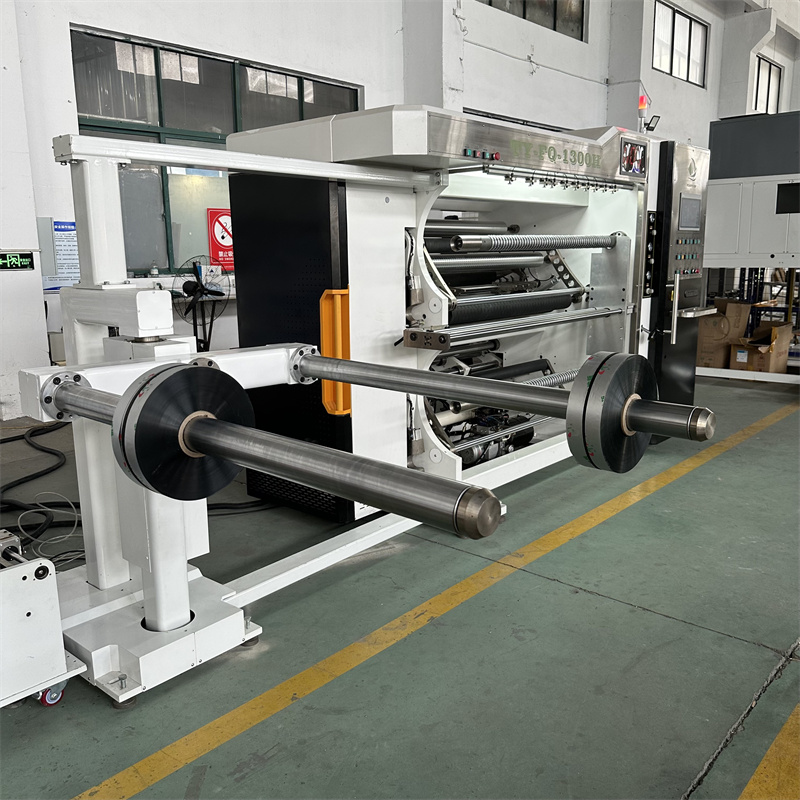

Unloading shaft

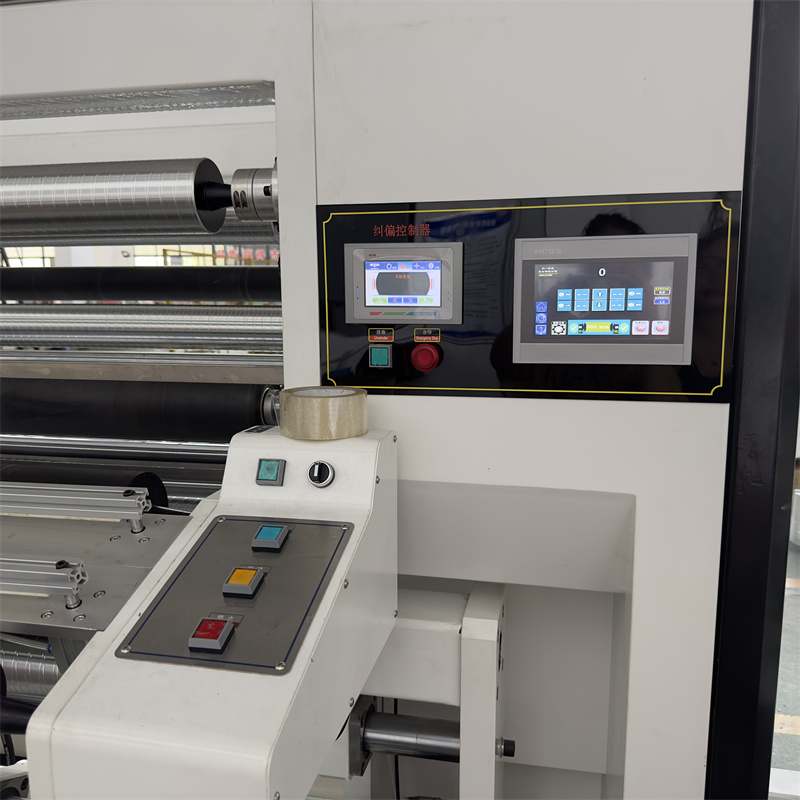

Touch screen

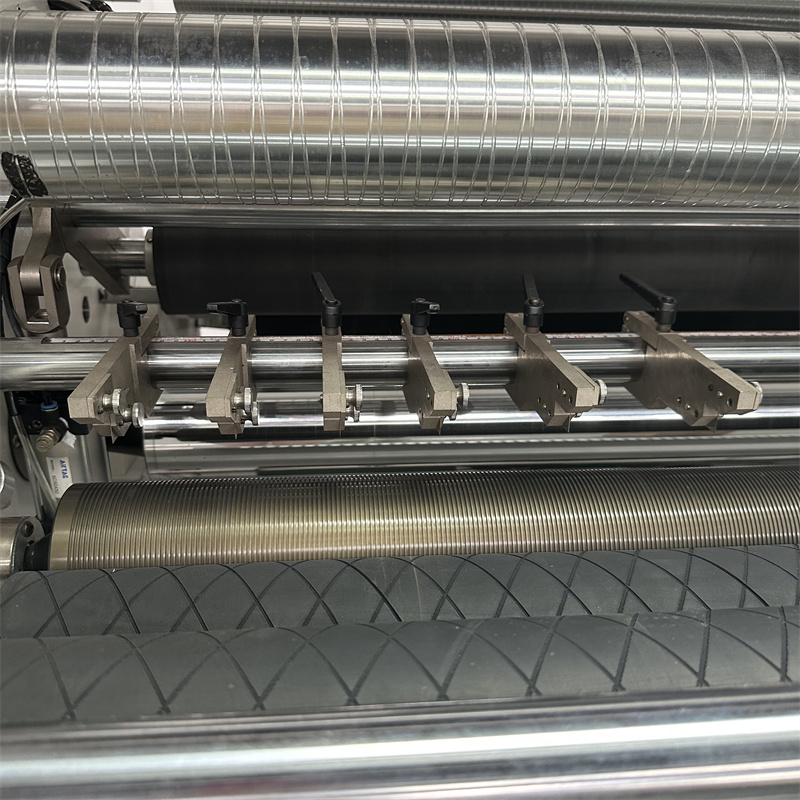

flat knife

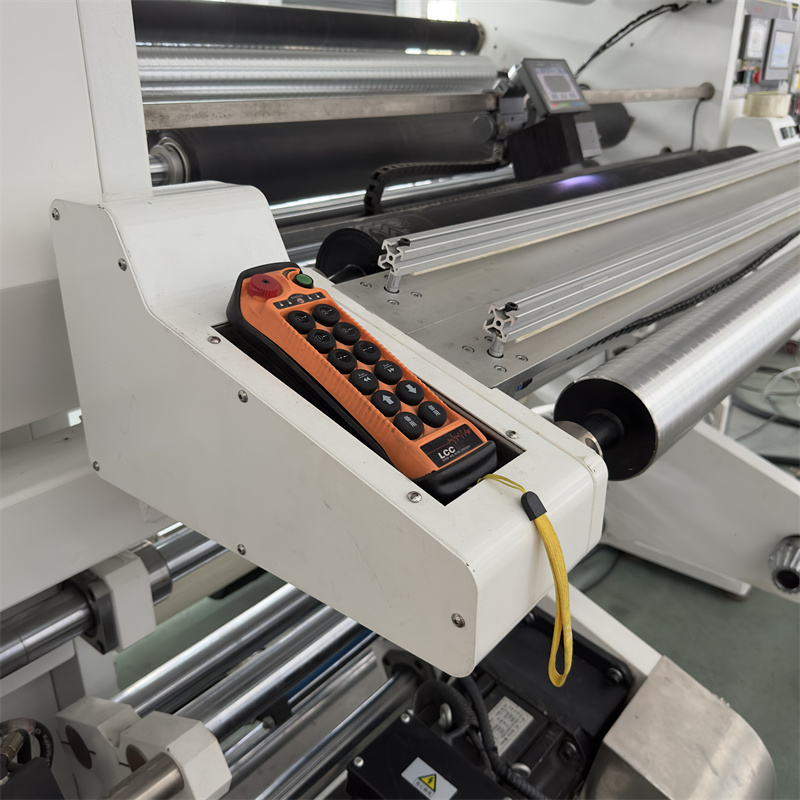

Unwind arm remote control operation (patented structure)
SMC Precision pressure reducing valve

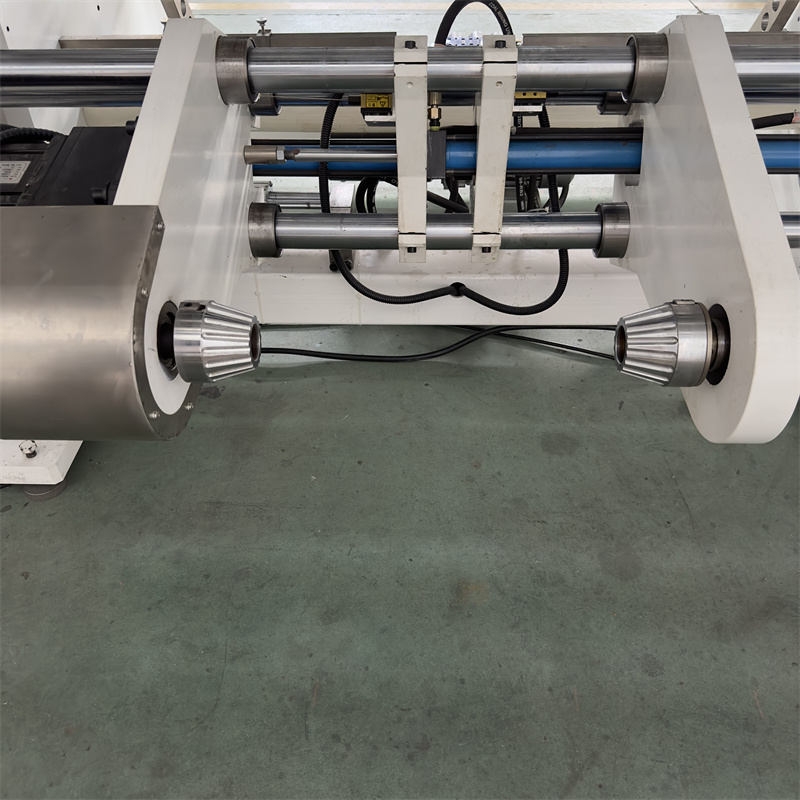

Shaftless gas cap structure

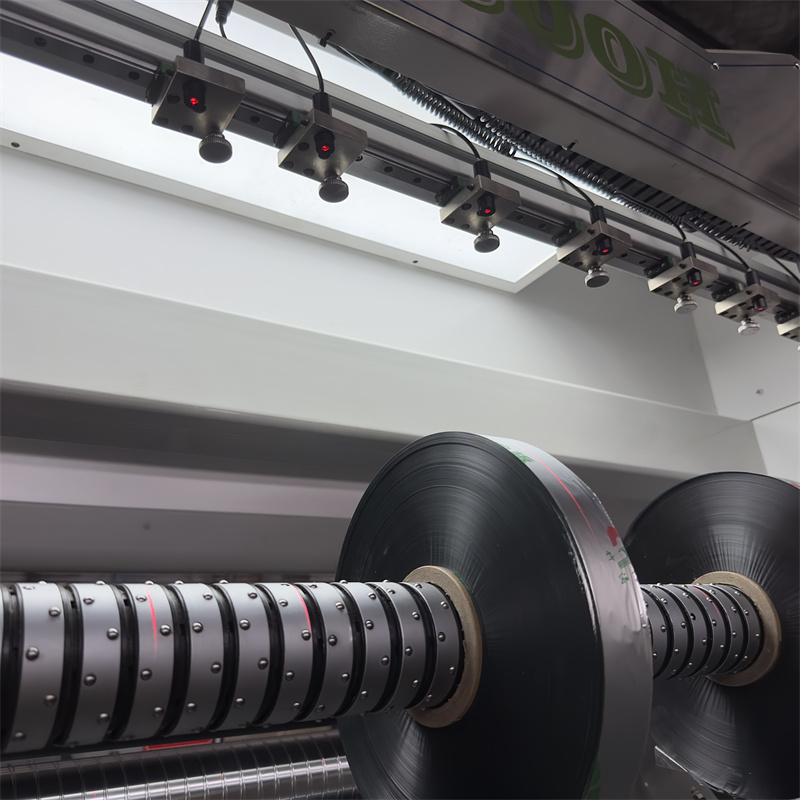

Laser positioning device

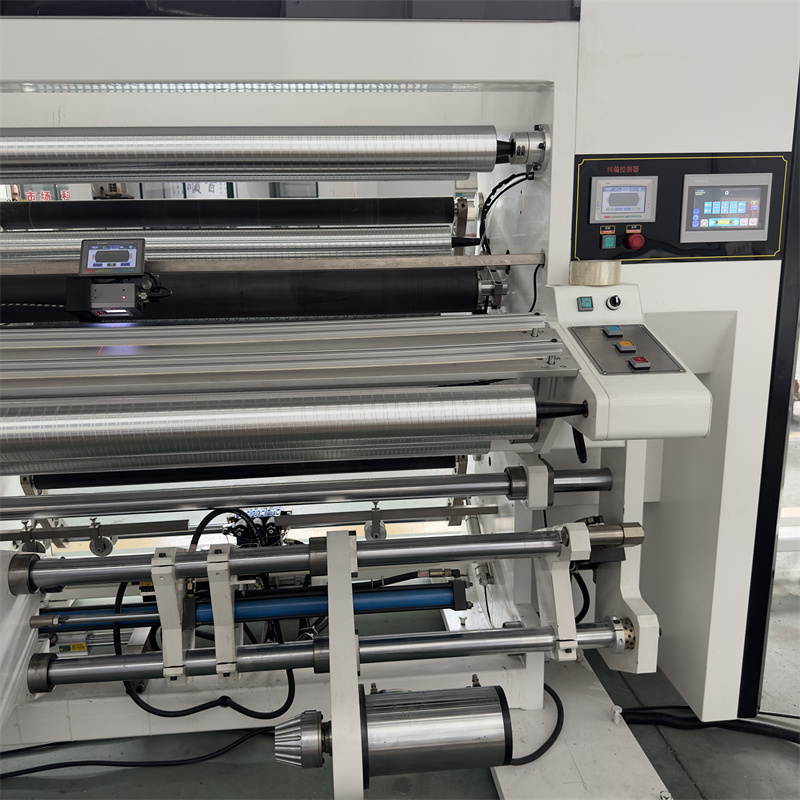

Double station EPC screen

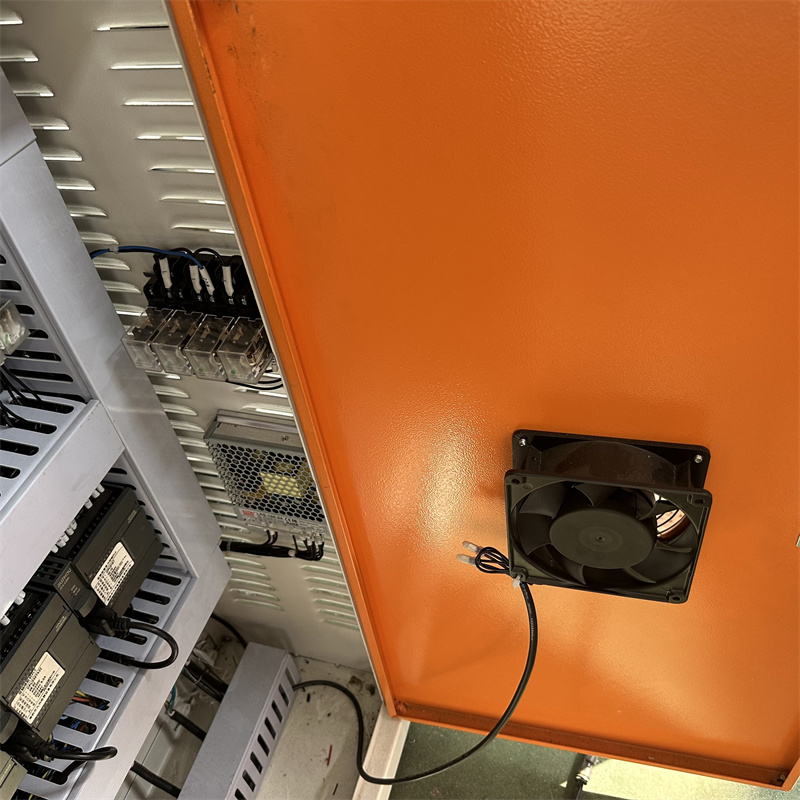

electrical box details

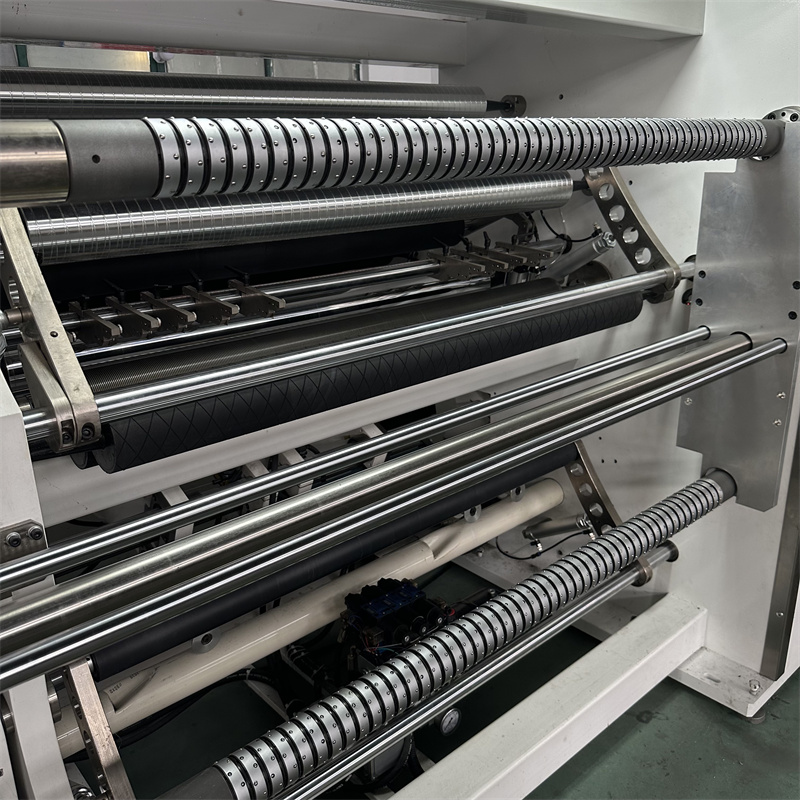

Differential shaft and various shafts

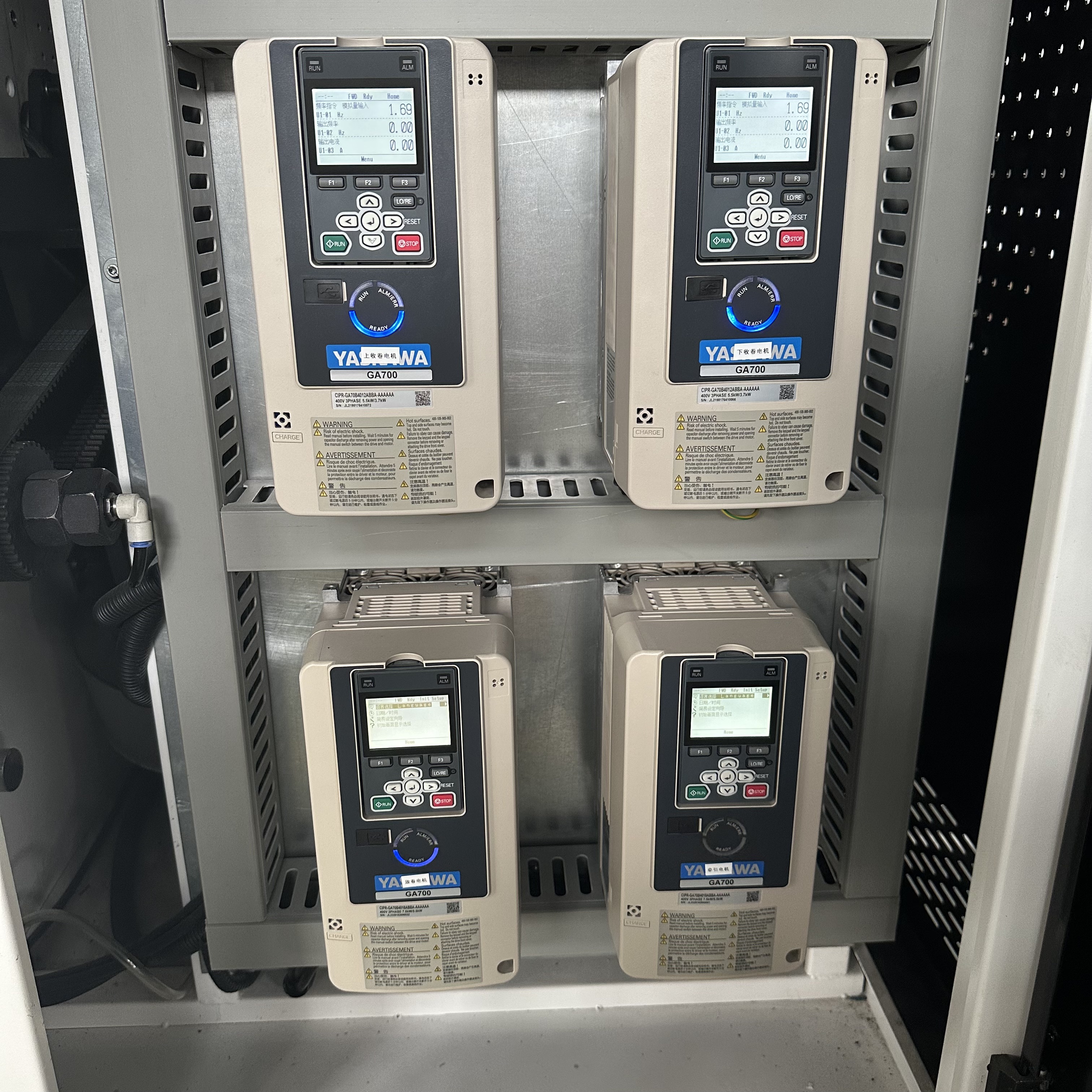

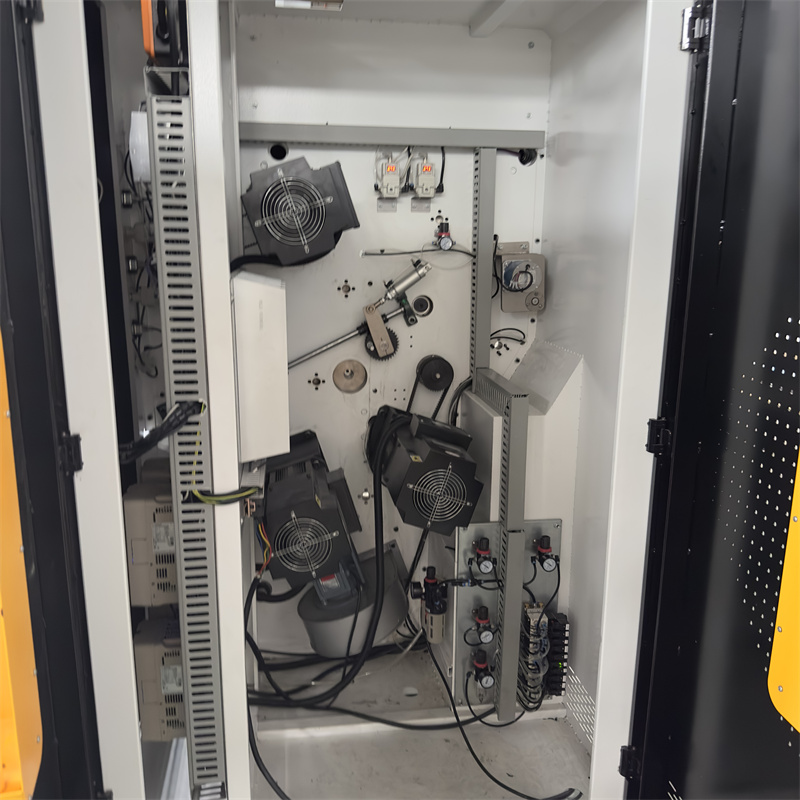

electric cabinet (three motors)

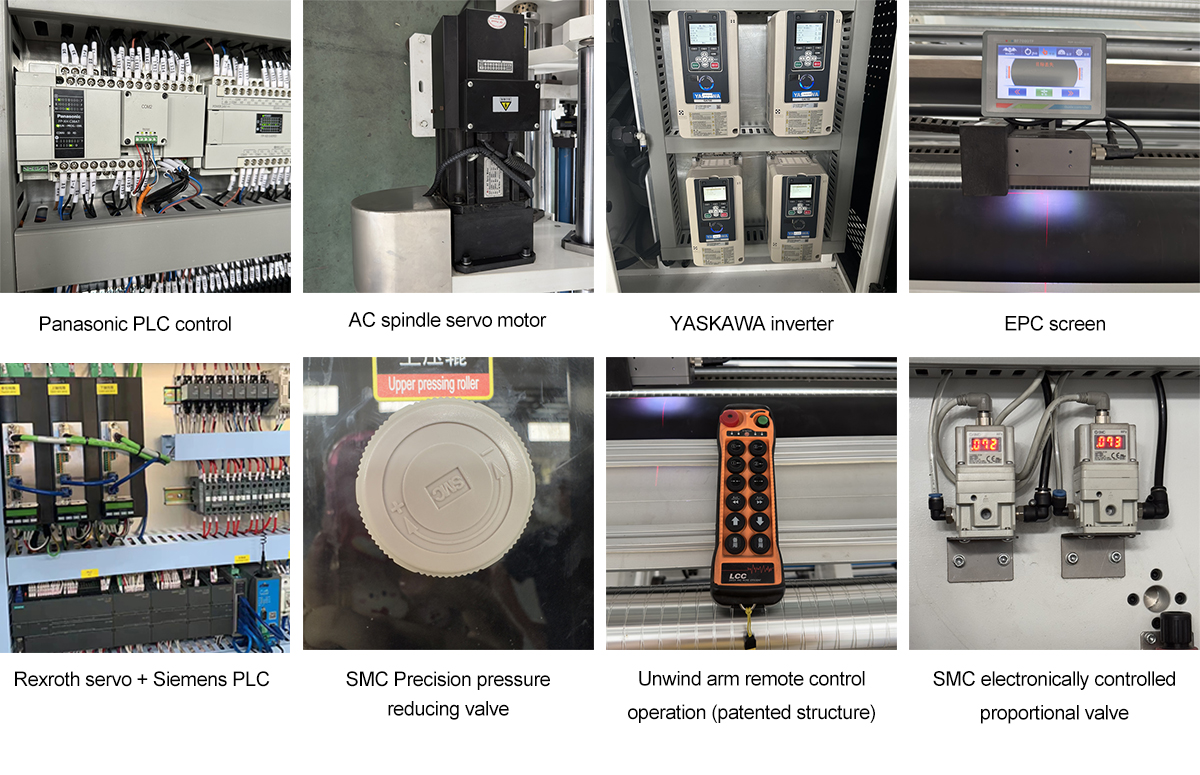

Branded Accessories
Performance and features
1. The automatic slitting machine adopts three-motor asynchronous servo speed, PLC control, and keeps running smoothly during acceleration
2. Automatic meter counting, alarm and other functions, using column alarm lights
3. Rewinding adopts A, B up and down differential shaft structure
4. Unwinding adopts CCD edge correction method
5. Flat knife slitting, waste edge blowing all over the discharge device
6. Integrated shaftless feeding, hydraulic lifting type, one magnetic powder unwinding.
Technical parameters
Machine type | 1300 type |
Mechanical maximum speed | 600 m/min |
Slitting thickness | 0.012mm-0.7mm (depending on different raw materials) |
Maximum rewinding diameter | Φ600mm |
Maximum diameter of unwinding | Φ800mm |
Maximum unwinding width for slitting raw materials | 50-1300mm |
Diameter of rewinding air shaft | φ75mm/2 pieces, Jiangsu. |
Slitting accuracy | ±0.2mm |
Total power | about 24kw |
Dimensions | 3600mm*1400mm*1950mm |
Weight | 4500kgs |
Color of machine | main white, optional black. |
Machine configuration
1.Unwinding part:
(1) Hydraulic lift up and down, and move left and right, shaftless air cap, 3-inch/6-inch cone head
(2) CCD photoelectric correction system
(3) Material receiving platform, pneumatic clutch pressure plate
(4) AC spindle servo active unwinding
(5) Remaining material control + automatic shutdown when material breaks
(6) Automatic calibration function of material width. When loading, the material arm automatically moves to the set material width position.
(7) Unwinding arm remote control operation (patented structure) easy and fast operation by one person when loading
(8) Automatic constant tension control, motor power 5.5KW
2.Traction part:
(1) Spindle motor driven independently, synchronous belt drive, low noise, high efficiency, low vibration
(2)Rigid and flexible double rollers, steel roller active, rubber roller passive, rubber roller pneumatic clutch, pressure manual adjustment
(3) Automatic meter-fixed length, material-cut stop, remaining material control functions
3.Slitter part
(1) Slitting structure: flat knife + grooved roller
(2) Number of tool holders: 10 pcs
(3)Guide roller: aluminum alloy guide roller
(4) Side material treatment: high pressure edge blowing machine + edge finishing machine to collect waste
4.Rewinding device
(1) Up and down two-axis structure, 3-inch slip shaft, automatic one-touch unloading mechanism (automatic pushing + automatic rotation + automatic leveling)
(2) Spindle servo motor independent drive, synchronous belt drive
(3) Pneumatic precision pressure regulating valve controls the receiving pressure roller
(4) Automatic taper tension control
(5) SMC electronically controlled proportional valve to control tension
5.Electrical and pneumatic part
Programmable logic controller (PLC) centralized control, double touch screen operation, humanized mechanical and program design, easy equipment operation, intuitive and convenient monitoring of various parameters and operating status.
6.Frame
(1) The wall panel is made of 50mm high-strength steel plate, which is processed and formed by the machining center, which ensures the high-precision operation of the equipment
(2) Guide roller bearings are imported from Japan
(3) Surface treatment process of each part of the machine: Chromium plating or phosphating surface treatment, wall panels, sheet metal parts spray surface treatment, to ensure the appearance of beauty and dirt resistance
The main list of detailed configuration
NO. | Name | Model | Qty | Brand/Origin |

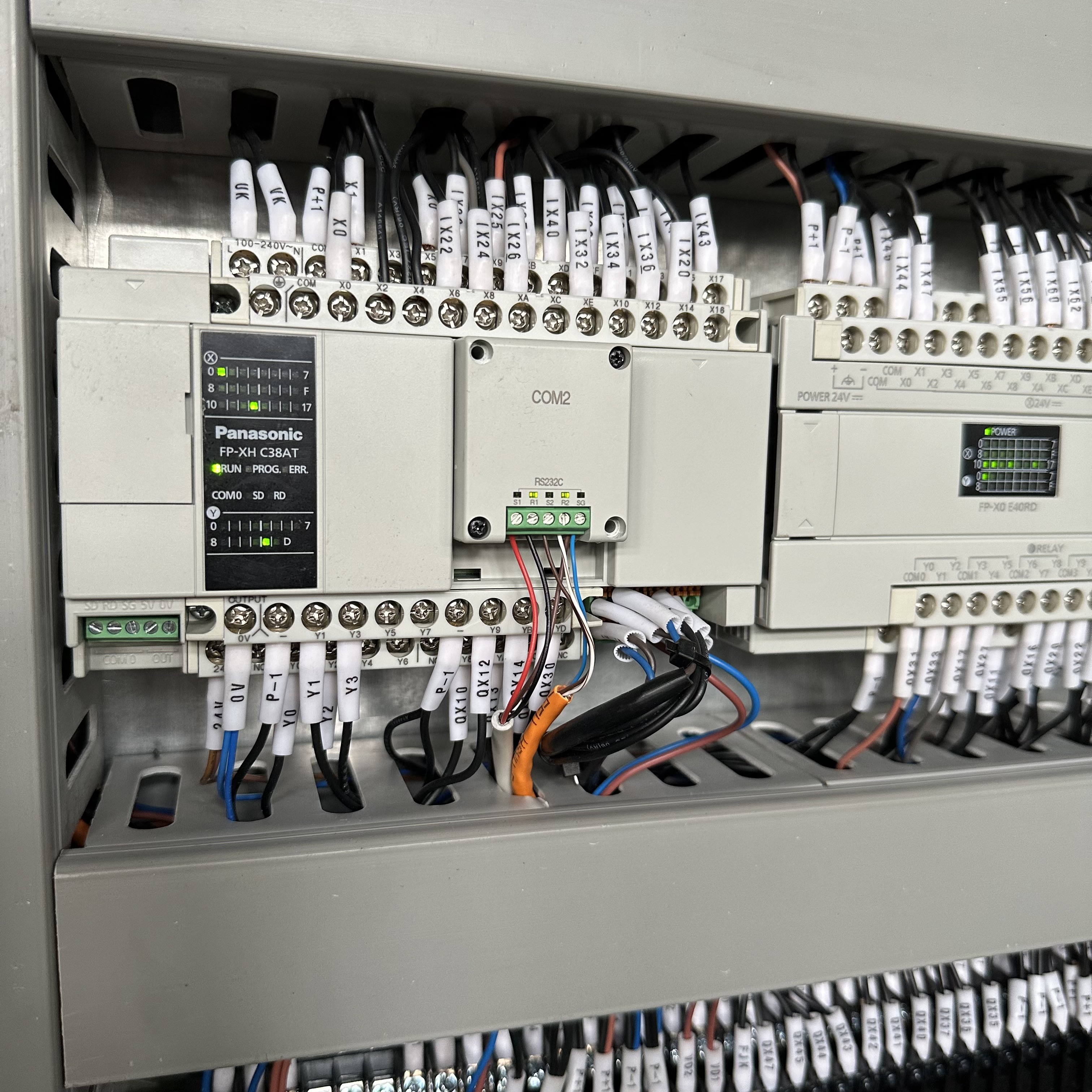

1. | PLC System | AFPX-XH | 1 set | Panasonic (Japan) |
2. | CCD EPC | BIANFU | 1 set | Bianfu (Sino-foreign joint venture brand) |
3. | Unwinding | 5.5KW | 1 set | Yaskawa (Japan) |
4. | Traction | 5.5KW | 1 set | |
5. | Rewinding | 4KW | 2 sets | |
6. | Tension sensor | ZY-50Kg | 2 pcs | Sino-foreign joint venture brand |
7. | Touch screen | 14 inches | 1 pc | MGCS (Sino-foreign joint venture brand) |
8. | Cylinder + Electromagnetic valve | AirTAC | 1 set | Taiwan |
9. | Electronically controlled proportional valve | ITV2050 | 2 pcs | SMC (Japan) |
10. | High-speed rotary joint | KSL08-02S | 2 pcs | |
11. | Infrared edge device | 1 set | China | |
12. | Guide roller bearing | 1 set | NSK/NTN (Japan) | |
13. | Synchronous belt | Standard type | 1 set | Gates (USA) |
14. | Rewind guide roll | 3 inch slip shaft | 2 pcs | China |
15. | Unloading rack | Intelligent type | 1 set | China |
16. | Waste Edge collecting machine | High speed type | 1 set | China |
17. | Speed indicator | S20 | 1 pc | China |
Application
This automatic slitting machine is suitable for slitting and rewinding of PET roll materials, such as BOPP, PET, PVC, paper-plastic composite and other roll materials.
plastic bags
wipe packaging
laminated materials
food labels
paper cups
water labels
paper
food pouches
