Product Parameter
Items | Details |
Material | All kinds of laminated film |
Film roller size | Max width 1240mm, Max diameter 800mm |
Pouch making speed | 180 shorts per minute (depends on bag type and material) |
Pouch width | 600mm Max |
3-side-seal | 50~400mm ( skip function for overlength bag ) |
Stand up pouch | 80~400mm |
Zipper pouch | 50~370mm |
Double cut length | 2~ 10mm |
Max power consumption | 66.55KW |
Dimension | 15400mm x1700mm x1950mm (LxWxH) |
Product introduction

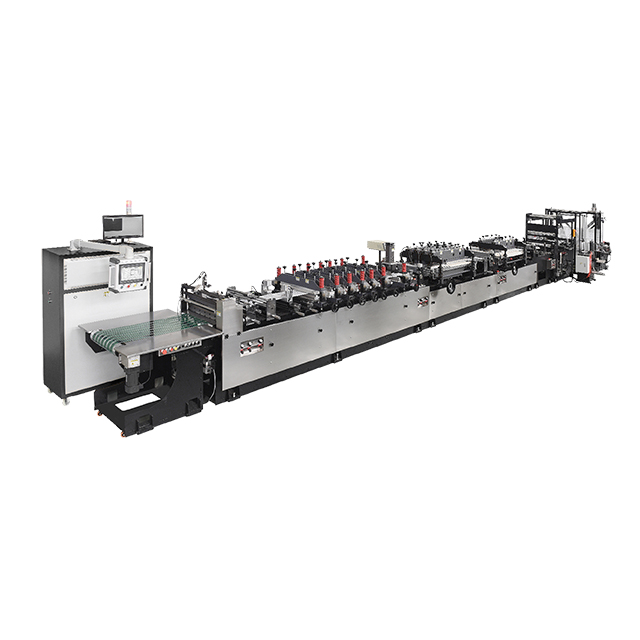

Our zipper pouch making machine is used as a zip lock bag manufacturing machine to produce different kinds of zipper bags automatically. It serves many industries, especially flexible packaging industry.
There are many advantages of zipper bag making machine:
It uses high precision sealing and cutting control with AC servo motor to control the length size of the discharge material.
Automatic positioning when the machine stops, using high precision photoelectric sensor for high precision positioning.
It can achieve maximum stability during high speed operation by automatic edge positioning control and automatic stop when finished.
Product features
I.It adopts industrial computer (PLC) and AC digital servo system, and German camera (CCD) system.
II.It realizes the upper and lower servo control of the main machine drive, the German camera (CCD) controls the double servo, calculates the deviation and realizes the single cutting round corner pouch and the double cutting by moving cutter.
III.With four-servos control of film feeding, it is a high-quality and high-efficiency pouch-making machine that highly combines mechanical, electrical, pneumatic and optical technology.
Applications
Our plastic zip lock bag making machine can be applied to food packaging, drug packaging, clothing packaging, daily chemical packaging and so on.
face mask
snack
food
personal care
clothes
medicine
digital products
standup pouches
Factory & Workshop
