Branded Accessories
Product Parameter
Items | Details |
Material | All kinds of laminated film |
Film roller size | Max width 1240mm, Max diameter 800mm |
Pouch making speed | 180 shorts per minute (depends on bag type and material) |
Pouch width | 600mm Max |
3-side-seal | 50~400mm ( skip function for overlength bag ) |
Stand up pouch | 80~400mm |
Zipper pouch | 50~370mm |
Double cut length | 2~ 10mm |
Max power consumption | 66.55KW |
Dimension | 15400mm x1700mm x1950mm (LxWxH) |
Product introduction

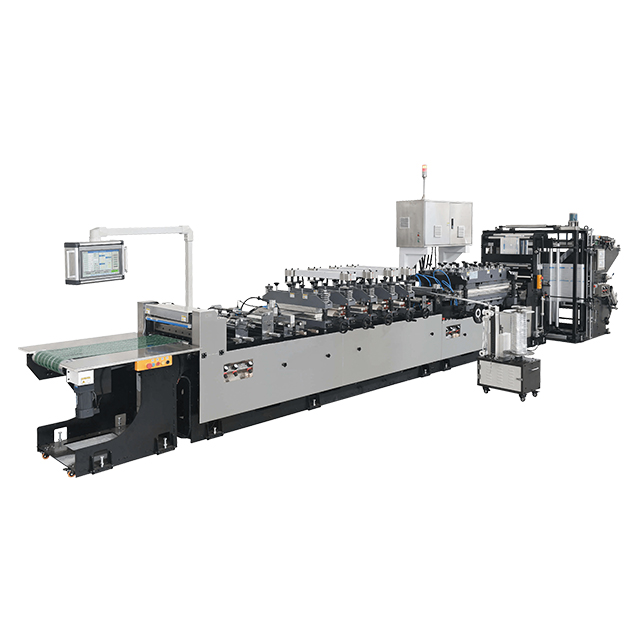

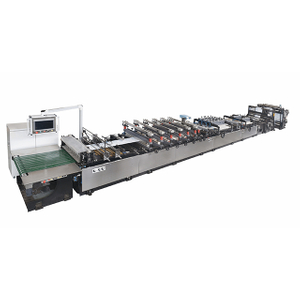

Our zipper pouch making machine is used as a zip lock bag manufacturing machine to produce different kinds of zipper bags automatically. It serves many industries, especially flexible packaging industry.
There are many advantages of zipper bag making machine:
It uses high precision sealing and cutting control with AC servo motor to control the length size of the discharge material.
Automatic positioning when the machine stops, using high precision photoelectric sensor for high precision positioning.
It can achieve maximum stability during high speed operation by automatic edge positioning control and automatic stop when finished.
Product features
I.It adopts industrial computer (PLC) and AC digital servo system, and German camera (CCD) system.
II.It realizes the upper and lower servo control of the main machine drive, the German camera (CCD) controls the double servo, calculates the deviation and realizes the single cutting round corner pouch and the double cutting by moving cutter.
III.With four-servos control of film feeding, it is a high-quality and high-efficiency pouch-making machine that highly combines mechanical, electrical, pneumatic and optical technology.
Applications
Our three seal pouch making machine is widely used in three-side sealing bags such as plastic composite film, aluminum-plastic composite film, paper-plastic composite film, etc. It is also suitable for the manufacture of special-shaped bags such as stand-up bags, concave-convex buckle bags, and zipper bags.

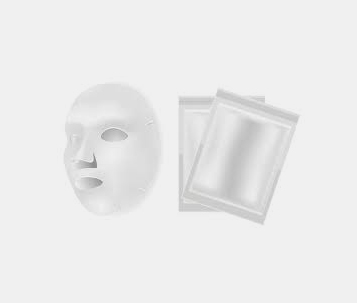

face mask

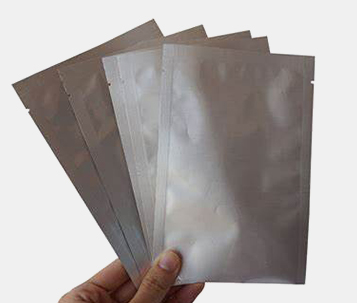

aluminum film packaging

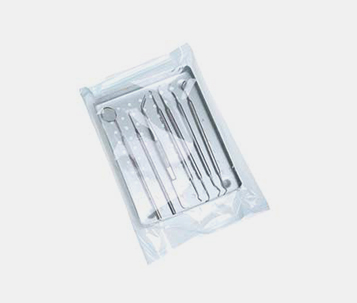

health care

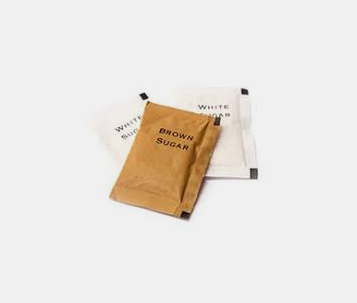

seasoning

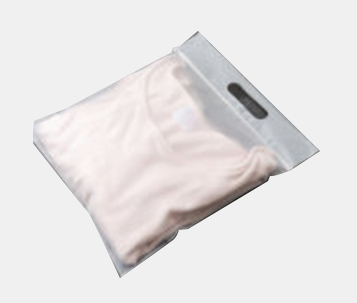

clothes

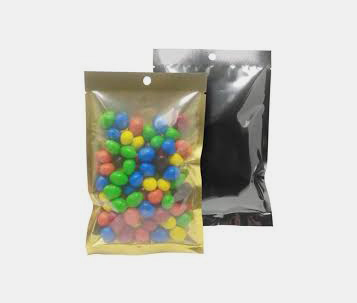

candy

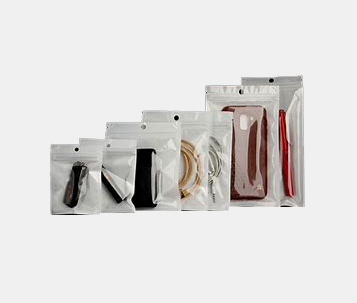

digital products

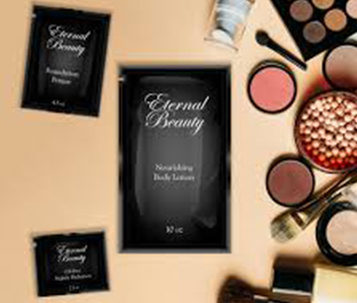

cosmetics
Factory & Workshop
